*3/6 weeks completion times

timeless design + the most advanced technology

bespoke builds, attentively assembled to order in London, from brand-new and always up-to-date components

large diameter tubes titanium frame and fork

available with any handlebars shape

aluminium rims, seat-post, handlebars and stem

sealed bearings all round

GATES carbon belt-drive *(chain-drive option available)

brown microsuede, or sport black saddle and grips

aluminium pedals with optional stainless steel toe clips

eyelets for mudguards and racks (both available on request)

hydraulic/mechanical disc brakes

easy to maintain or upgrade, external cable routings and no proprietary standards

wide rims allow for a vast selection of tyre sizes

step-through versions also available on request

can be also converted to or purchased as a conventional push-bike and upgraded at a later date to the newest generation of the motors

neutral handling with all power going to the rear wheel

no wheel speed sensor, pedal torque sensor or battery cables

optional GEN2/3 remote available separately

no noticeable resistance when freewheeling or with assist turned off

single-speed or 2 internal-gears crankset, with an super-short extra gear for extremely steep climbs

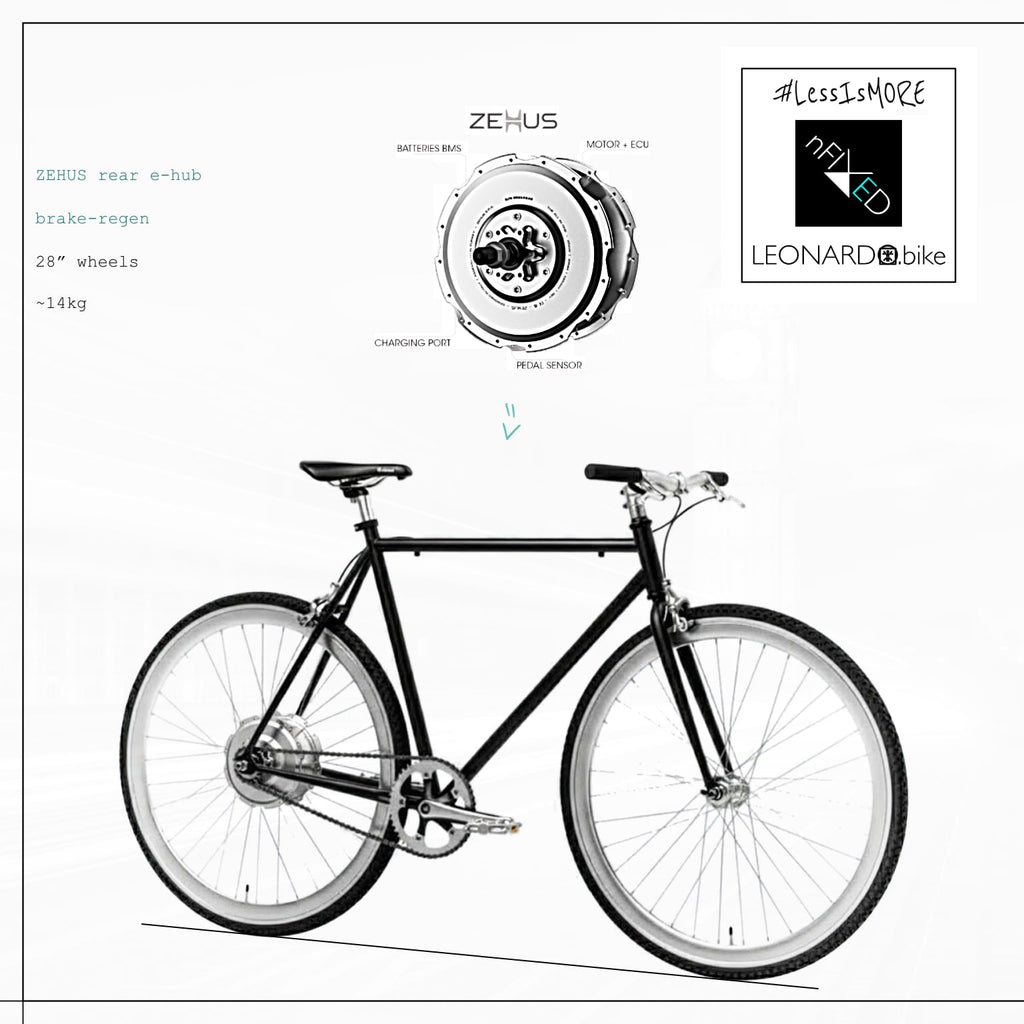

ZEHUS HALOS with brake-regen or ZEHUS HORIZON with BIKE+ no-need-to-charge modes and brake-regen

GEN3.0 ZEHUS HALOS ALL-IN-ONE with brake-regen

smaller, lighter battery and max energy recovery

super-efficient direct-drive system

all the needed components in a tiny and elegant rear bike hub

brushless motor, batteries, electronics and sensors, everything stays within 180mm diameter and 120mm width

with a weight of just over 3kg

brake-regen by backpedalling for maximum efficiency

bluetooth connectivity allows you to connect your smartphone* (iOS and android supported) to your ZEHUS device to select your favourite power mode, manage your trip data and even lock the bike

thanks to the ZEHUS app, your smartphone acts also as a gateway throughout the ZEHUS community, allowing you to access services such as online diagnosis, bike-oriented navigation, mobility stats and other social functions (e.g. find a stolen bike)

~200Wh battery

40Nm max torque

GEN3.0 ZEHUS HORIZON (BIKE+) ALL-IN-ONE no-need-to-charge modes and brake-regen

BIKE+ technology represents the 3rd generation of e-bikes

with a BIKE+ powered bike, you have the first e-bike that does not need to be recharged

helping when you need it and recharging the battery where your body can deliver it, BIKE+ technology seamlessly optimises your efficiency while riding, decreasing your effort by 30-40% (in an urban trip)

the first non-plugin parallel hybrid bike

SCHLUMPF MOUNTAIN-DRIVE 2-SPEED INTERNAL-GEAR CRANK-SET

the super-flat planetary gearbox (only 10mm wide), blends in alongside the chainring in a seamless fashion

change gear with a simple kick of the heel on the side buttons,while standing still or under heavy load

low maintenance

no cables, levers or derailleurs

high efficiency, high quality materials, ensure great longevity

symmetrical clutch allows full torque in both pedalling directions, making it compatible with coaster brakes and fixed-gear bikes without a rear brake

the optional EASY-SHIFT plates, available on request, cover the whole crank arms and allow for shifting by pushing on a larger area, best for clip-in pedals

ratios: 40% to direct-drive (for even the steepest climbs)

videos on our ‘TECHNOLOGIES’ page

final pics provided before shipping

get in touch if you have some more specific requirements

S

50cm (centre-top) seat-tube

50cm (centre-centre) effective top-tube

11.5cm head-tube

74° seat-tube angle

~53mm B.B. drop

M

53cm (centre-top) seat-tube

53cm (centre-centre) effective top-tube

11.5cm head-tube

74° seat-tube angle

~53mm B.B. drop

L

56cm (centre-top) seat-tube

56cm (centre-centre) effective top-tube

11.5cm head-tube

74° seat-tube angle

~53mm B.B. drop
