Comes with both standard and electric rear wheels, quick to install and swap around
- • • • • • • • • • • • • • • • • • • • • • •

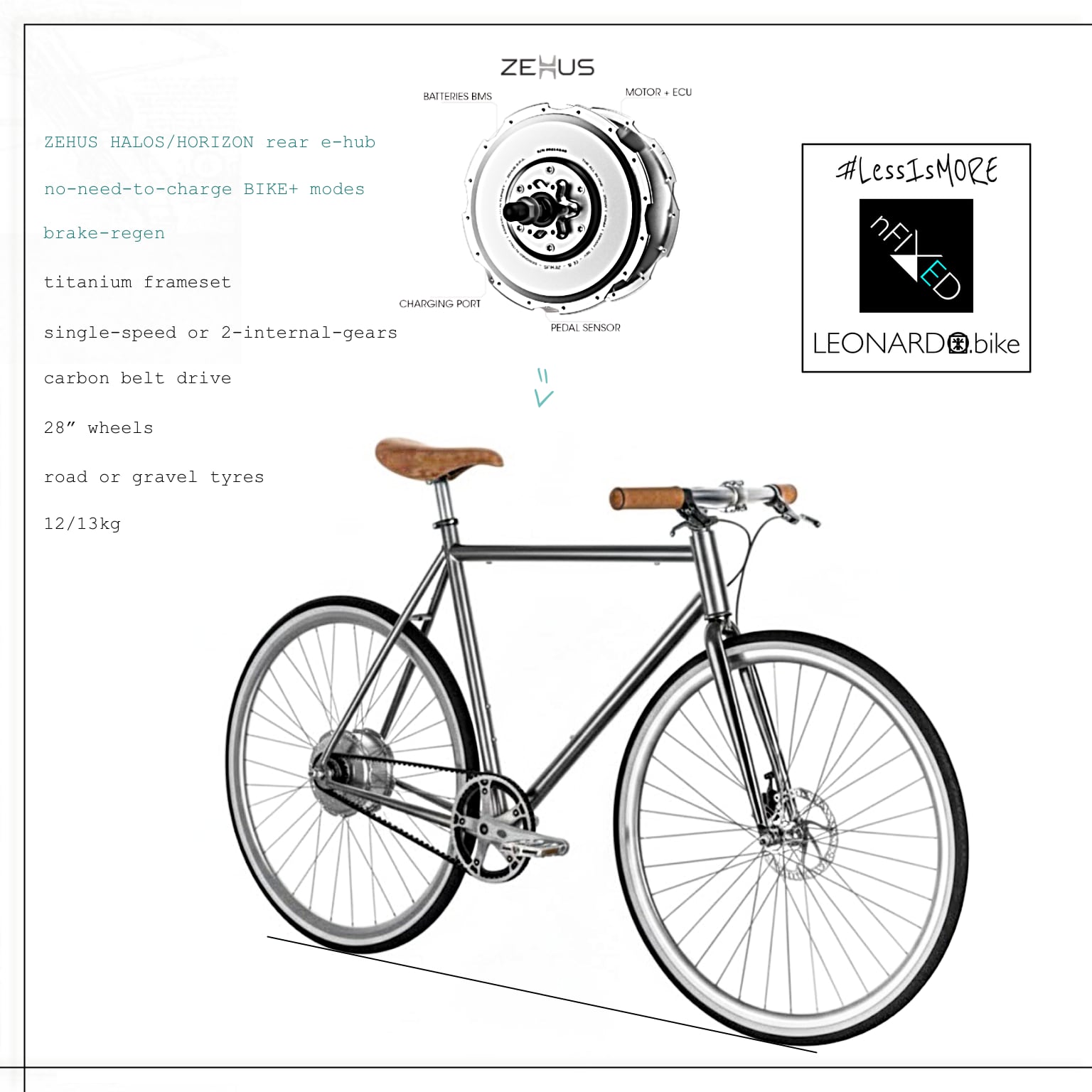

- The Gen3 Zehus Horizon E-Leonardo conceals a sophisticated "parallel hybrid" system within the clean geometry of a classic titanium commuter, effectively hiding its electric nature by packaging the motor, battery, and sensors entirely inside a compact 3kg rear hub. While the build features a corrosion-resistant titanium frame and grease-free Gates Carbon Belt Drive, the core technology is the Zehus Horizon’s proprietary 40Nm powertrain, which utilises slope sensors to provide torque on climbs while imperceptibly siphoning energy on flats to recharge its 200Wh internal battery. This "Bike+" algorithm allows for potentially infinite range without wall charging, further supported by a regenerative KERS braking system activated simply by back-pedaling. For riders facing extremely severe gradients, the optional Schlumpf Mountain Drive adds a planetary gearbox inside the bottom bracket, allowing you to heel-shift into a 1:2.5 reduction gear to multiply pedal force without cluttering the handlebars with shifters or cables.
- • • • • • • • • • • • • • • • • • • • • • •
- Timeless design + the most advanced technology
- Bespoke build, readily assembled to order in London
- Brand-new latest gen components (no pre-assembled old stock)
- Elegant to ride: relaxed cadence while motor seamlessly assists up to 25km/h, all without clunky derailleurs
- Strong, light and corrosion-resistant titanium tubes
- Available with any handlebars shape
- Aluminium rims, seat-post, handlebars and stem
- Sealed bearings throughout
- GATES carbon belt-drive *(chain-drive option available)
- Brown microsuede, or sport black saddle and grips
- Aluminium pedals with optional stainless steel toe clips
- Eyelets for mudguards and racks (both available on request)
- Quickly replaceable, compression-less housing hydraulic/mechanical disc brake upfront and rim + KERS brakes at the rear
- Easy to maintain or upgrade, external cable routings and no proprietary standards
- Semi-slick, white-walls or puncture-protection SCHWALBE tyres
-
Can be regularly and quickly upgraded to future generations of the e-motor
- Neutral handling with both electric and pedal power going to the rear wheel
- No wheel speed sensor, pedal torque sensor or battery cables
- Optional ZEHUS remote available separately
- No noticeable resistance when freewheeling or with assist turned off
- Single-speed or 2 internal-gear crankset, with a super-short extra gear for extremely steep climbs
- ZEHUS HALOS with brake-regen or ZEHUS HORIZON with BIKE+ no-need-to-charge modes and brake-regen
- • • • • • • • • • • • • • • • • • • • • • •
- GEN3 ZEHUS ALL-IN-ONE
- Only adds a total of ~3kg
- Improved charging, battery and torque
- Already compliant with the new EU stringent safety standards.
- International network of repair and assistance centres
- The lightest, most compact and super efficient direct-drive system to energise your bike, also featuring its unique KINETIC ENERGY RECOVERY SYSTEM (KERS)
- It all works in unison
- The integrated motor, battery and electronics work seamlessly to assist the cyclist while pedalling or recovering energy
- Activate the K.E.R.S. through back-pedalling, to extend the range of your e-bike
- Use the ZEHUS wireless ecosystem to control the All In One while riding, or set it once and forget it. The motor offers extra functionalities when using the optional Controller, the Zehus App or a 3rd party displays
- Lock your motor from the app to enhance the security of the bike while parked
- the integrated Kinetic Energy Recovery System allows the motor to collect braking energy to recharge the batteries, it is activated manually, with a back-pedal movement, or from the controller
- • • • • • • • • • • • • • • • • • • • • • •
- ZEHUS HORIZON BIKE+ MODES (NOT ON HALOS):
- Unconventional e-bike system to let you ride beyond limits
- it features an automatic energy recovery system, similar to hybrid cars, working in addition to a slope and road quality sensor, to optimise your pedalling effort.
- HORIZON features advanced sensors to optimise the assistance, helping you accelerate when climbing hills, then automatically recover energy on the flatter or downhill terrain
- through the smart and automatic energy optimisation of BIKE+ modes, it is possible to significantly extend the range capabilities of the e-bike, delivering power when necessary and recovering energy to recharge the battery accordingly
- customise your riding experience by adjusting the motor parameters.
- HORIZON is the first and only pedal-assisted e-bike system that doesn’t need to be recharged. It allows you to ride in an assist level where you will never have to recharge the battery from an electrical outlet
- together with the back-pedalling brake-regen, in BIKE+ mode, HORIZON intelligently recovers energy from your forward pedalling too, when your effort is low and slope/road-quality sensors allow it, never completely depleting the battery and always keeping some power in reserve for the uphill sections
- • • • • • • • • • • • • • • • • • • • • • •
- OPTIONAL SCHLUMPF MOUNTAIN-DRIVE 2-SPEED INTERNAL-GEARBOX CRANK-SET WITH EXTRA STEEP CLIMBING REDUCTION GEAR:
- The super-flat planetary gearbox (only 10mm wide) blends in alongside the chainring in a seamless fashion. Change gear with a simple kick of the heel on the side buttons, while standing still or under heavy load
- low maintenance
- no cables, levers or derailleurs
- high efficiency, high-quality materials, ensure great longevity.
- Symmetrical clutch allows full torque in both pedalling directions, making it compatible with coaster brakes and fixed-gear bikes without a rear brake.
- The optional EASY-SHIFT plates, available on request, cover the whole crank arms and allow for shifting by pushing on a larger area, best for clip-in pedals.
- MOUNTAIN-DRIVE ratios: 1x direct-drive and 0.4x reduction for even the steepest climbs.
- • • • • • • • • • • • • • • • • • • • • • •
- Videos on our ‘MEDIA’ page.
- Build’s progress and final bike's pic provided before shipping.
- Get in touch for any custom requirements.
- • • • • • • • • • • • • • • • • • • • • • •
- XS available on request.
- • • • • • • • • • • • • • • • • • • • • • •
- S (155-165cm height)
- 50cm (centre-top) seat-tube
- 52cm (centre-centre) effective top-tube
- 12 cm head-tube
- seat-tube angle 75°.
- • • • • • • • • • • • • • • • • • • • • • •
- M (165-175cm height)
- 53cm (centre-top) seat-tube
- 53cm (centre-centre) effective top-tube
- 13cm head-tube
- seat-tube angle 74.5°.
- • • • • • • • • • • • • • • • • • • • • • •
- L (175-185cm height)
- 56cm (centre-top) seat-tube
- 55cm (centre-centre) effective top-tube
- 15cm head-tube
- seat-tube angle 73.5°.
- • • • • • • • • • • • • • • • • • • • • • •
- XL (185-195cm height)
- 59cm (centre-top) seat-tube
- 57 cm (centre-centre) effective top-tube
- 16cm head-tube
- seat-tube angle 73°.
- • • • • • • • • • • • • • • • • • • • • • •
- * Sales outside the UK will incur local VAT and import duties.
- * Step-through versions also available on request.
- Follow us on socials for recurring promo-codes.
- • • • • • • • • • • • • • • • • • • • • • •
- * Sales outside the UK will incur local VAT and import duties.
- * ~2 weeks lead times for size-L / ~6 weeks for other sizes.
- • • • • • • • • • • • • • • • • • • • • • •
