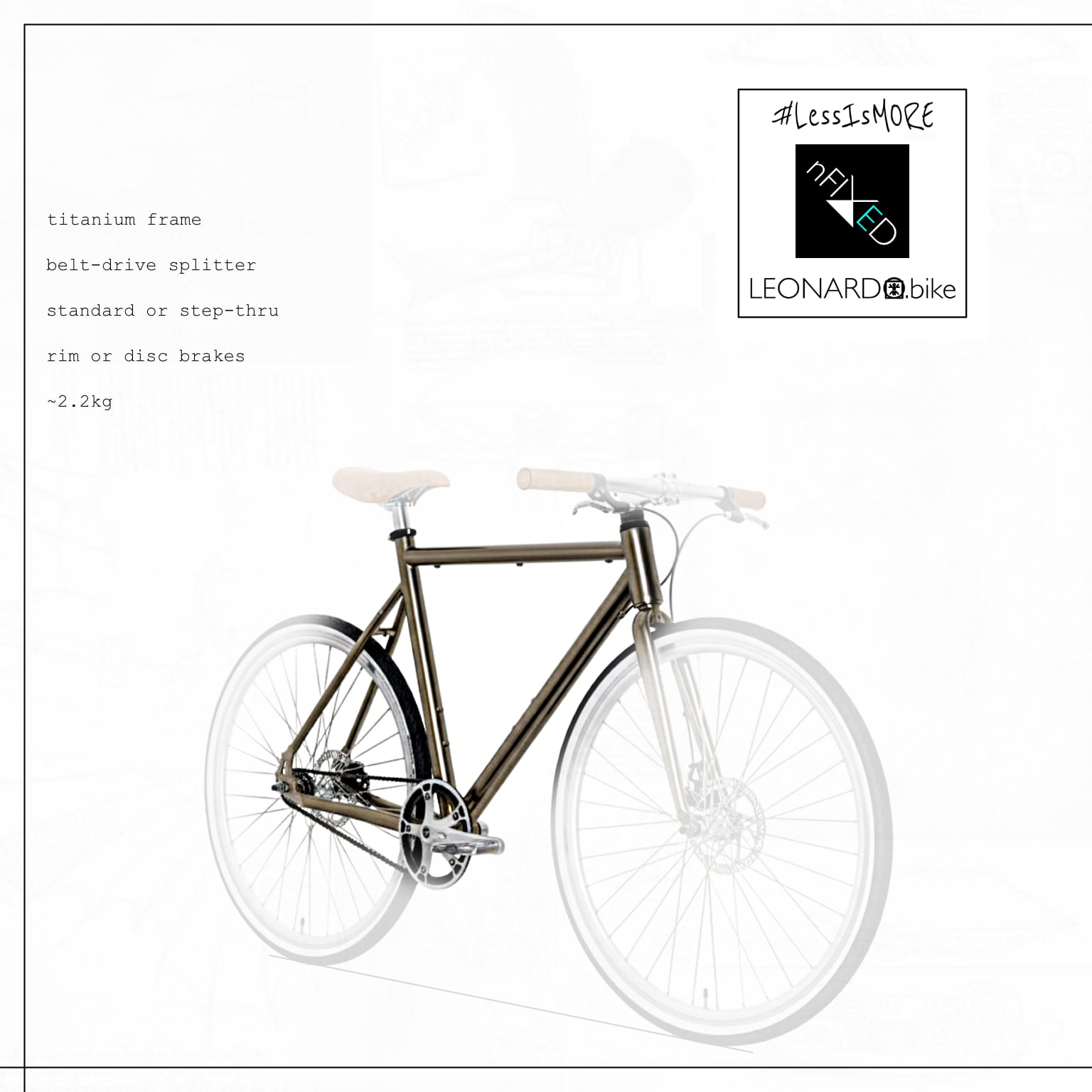

CUSTOM TITANIUM FRAME-SET BELT DRIVE DISC-BRAKES
Sale price
Price
£1,075.00
Regular price
Unit price
per
-
super-versatile, exclusive design
- step-through version available on request
- large diameter titanium tubes frame (~1.6kg) and titanium fork (~0.6kg)
- eyelets for mudguards and racks
- track or quick-release dropouts
- rim or disc-brake mounts
- 120/135mm rear hubs spacing
- chain or belt drive
- threaded bottom bracket shell
- double bottle cage mounts
- clearance for up to 32c tyres
- ~74°seat-tube angle
- ~53mm B.B. drop
- compatible with our ZEHUS and KEYDE electric motors
- other options can be discussed
- • • • • • • • • • • • • • • • • • • • • • •
- XS available on request
- • • • • • • • • • • • • • • • • • • • • • •
- S (155-165cm height)
- 50cm (centre-top) seat-tube
- 52cm (centre-centre) effective top-tube
- 12 cm head-tube
- seat-tube angle 75°
- • • • • • • • • • • • • • • • • • • • • • •
- M (165-175cm height)
- 53cm (centre-top) seat-tube
- 53cm (centre-centre) effective top-tube
- 13cm head-tube
- seat-tube angle 74.5°
- • • • • • • • • • • • • • • • • • • • • • •
- L (175-185cm height)
- 56cm (centre-top) seat-tube
- 55cm (centre-centre) effective top-tube
- 15cm head-tube
- seat-tube angle 73.5 °
- • • • • • • • • • • • • • • • • • • • • • •
- XL (185-195cm height)
- 59cm (centre-top) seat-tube
- 57 cm (centre-centre) effective top-tube
- 16cm head-tube
- seat-tube angle 73 °
- • • • • • • • • • • • • • • • • • • • • • •
- * 4/8 weeks lead times
