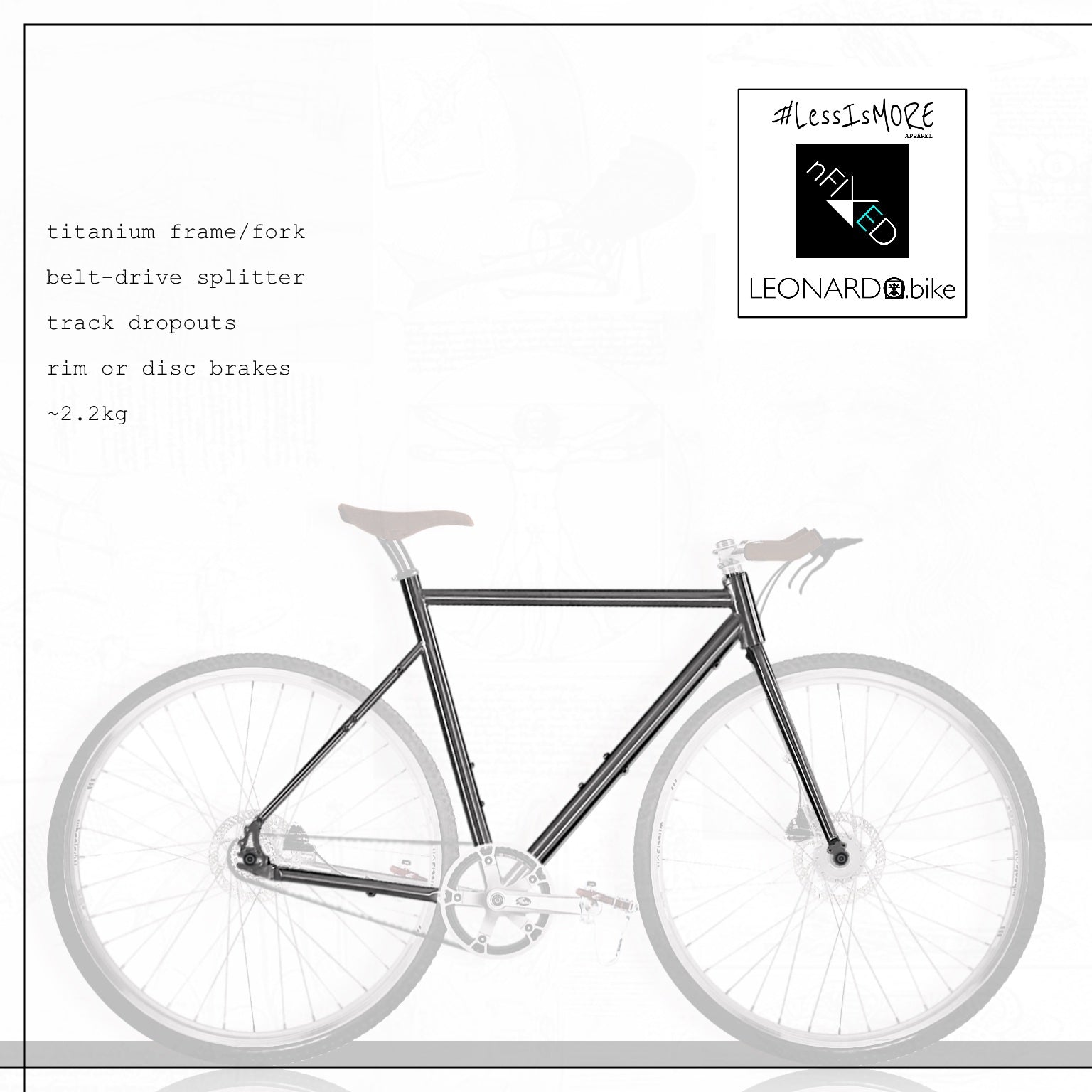

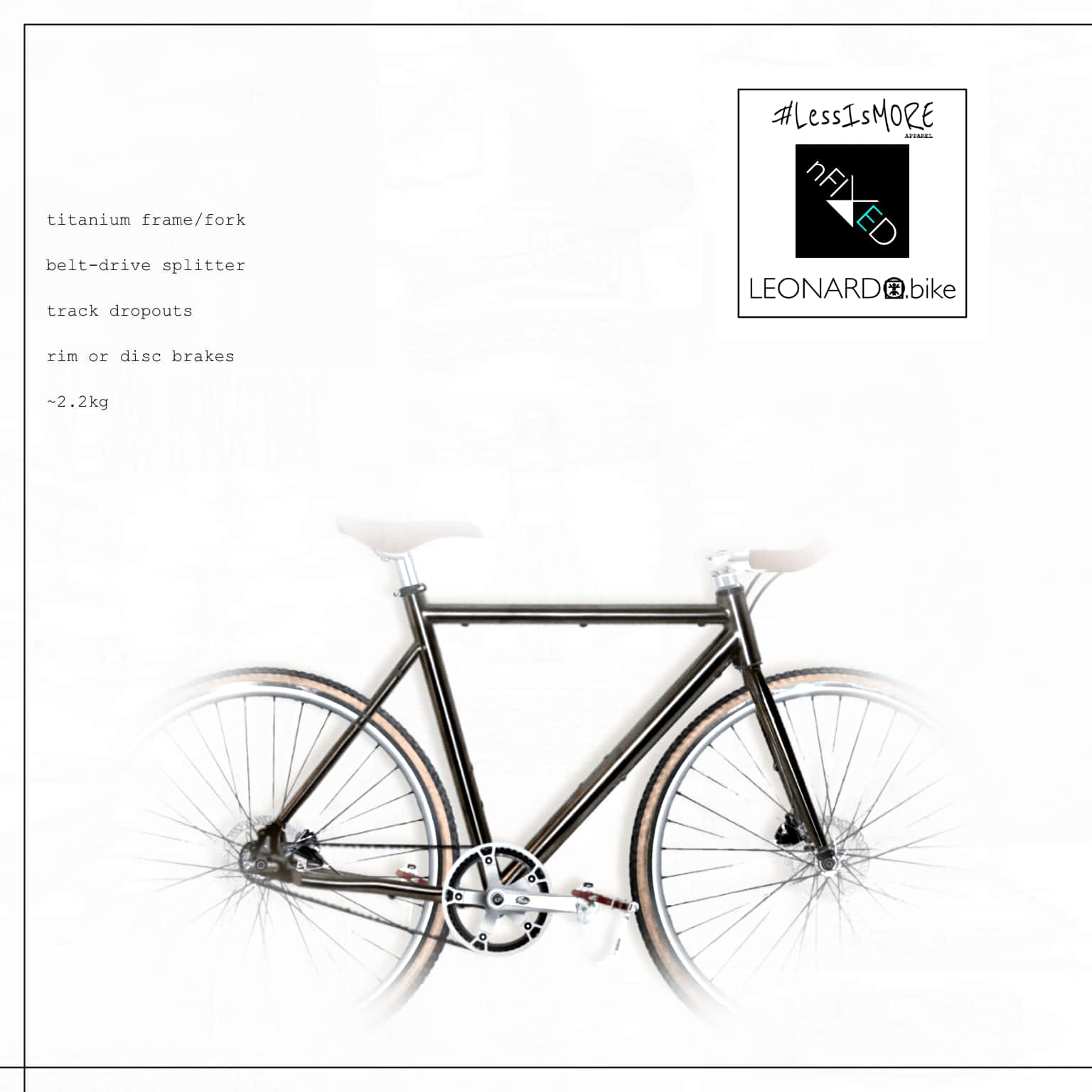

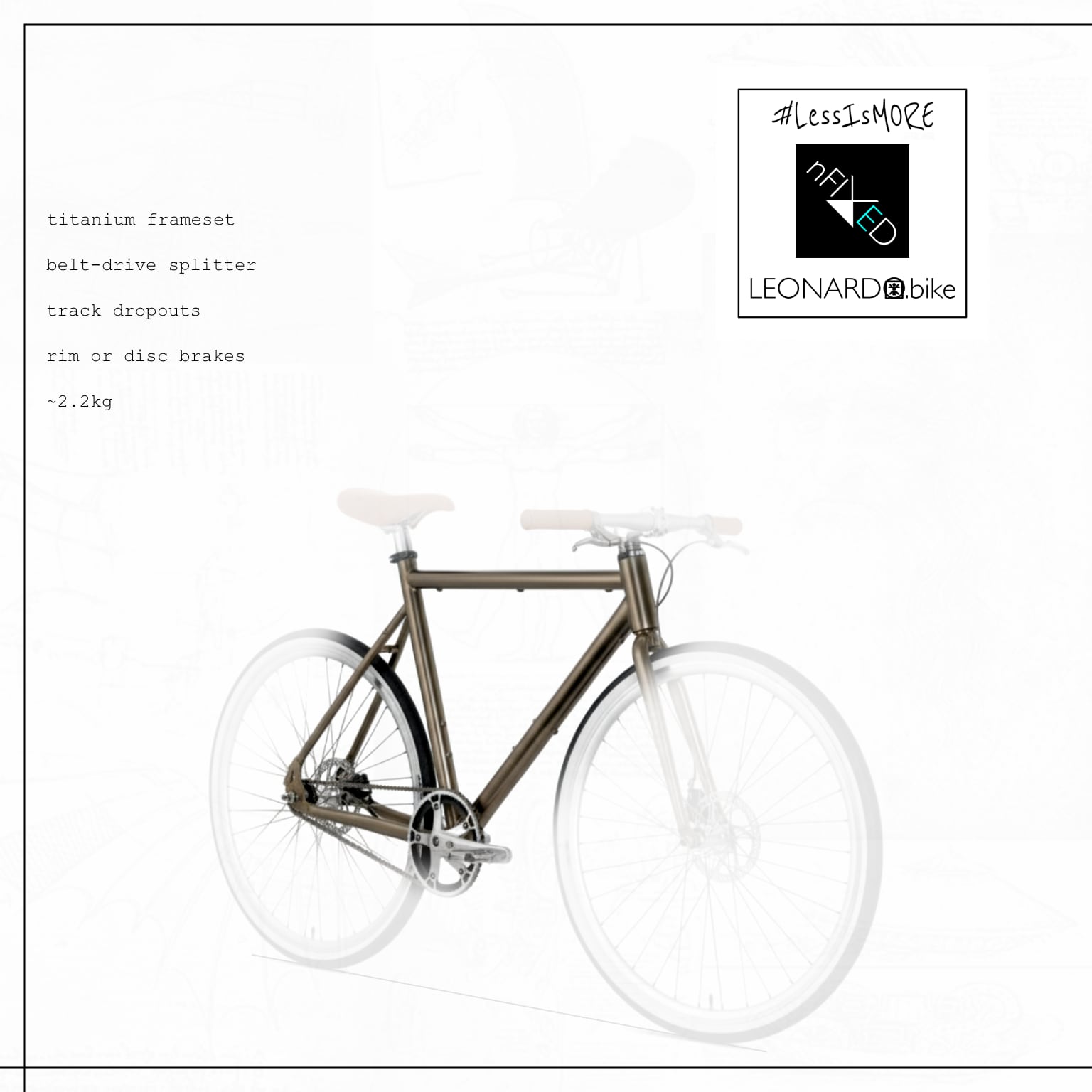

"LEONARDO frame-set" titanium carbon-belt disc-brakes track-dropouts

super-versatile, exclusive, bespoke design

large diameter tubes titanium frame (1.6kg) and titanium fork (0.6kg)

eyelets for mudguards and racks

track rear dropouts, nut/quick-release fork

I.S. disc-brake mounts

100/135mm front/rear hubs spacing

31.6mm internal diameter seat-tube

splitter for carbon belt drive

threaded B.B.

double bottle cage mounts

easy to maintain or upgrade, external cable routings and no proprietary standards

clearance for up to 32c tyres

step-through versions also available as pre-orders

compatible with our ZEHUS and BIKE+ electric motors

other custom titanium frame designs can be discussed

S

50cm (centre-top) seat-tube

50cm (centre-centre) effective top-tube

11.5cm head-tube

74° seat-tube angle

~53mm B.B. drop

M

53cm (centre-top) seat-tube

53cm (centre-centre) effective top-tube

11.5cm head-tube

74° seat-tube angle

~53mm B.B. drop

L

56cm (centre-top) seat-tube

56cm (centre-centre) effective top-tube

11.5cmhead-tube

74°seat-tube angle

~53mm B.B. drop
